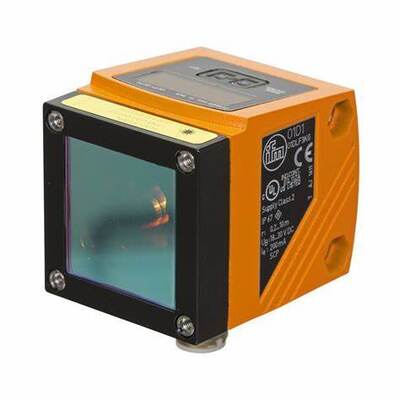

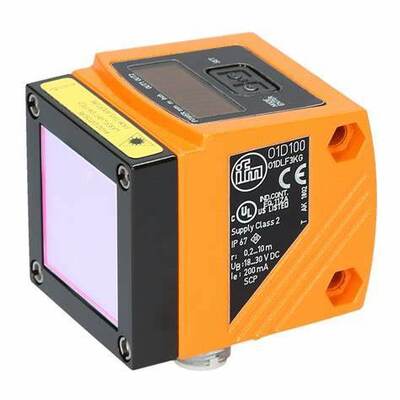

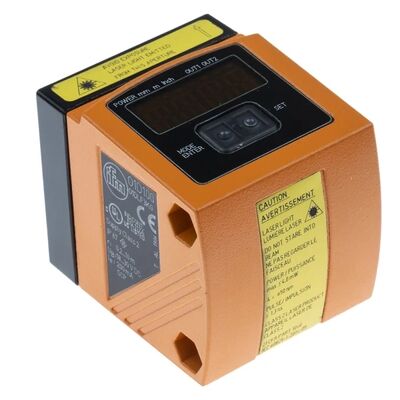

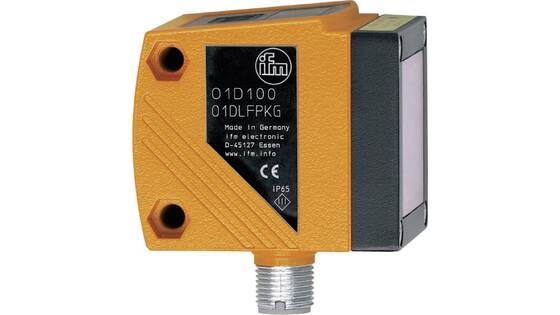

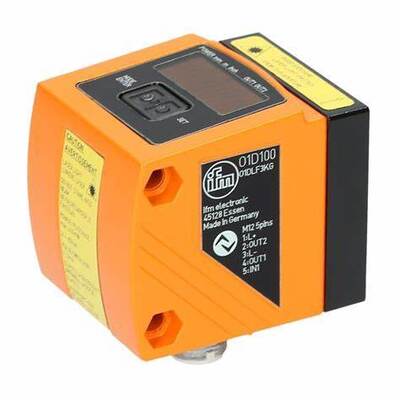

Original IFM O1D100 photoelectric sensor, laser distance sensor, analog PNP, in stock at low price
| Tempat asal | Jerman |
|---|---|
| Nama merek | IFM |
| Nomor model | O1D100 |
| Kuantitas min Order | 2 |
| Harga | USD＄195 |
| Kemasan rincian | kemasan asli |
| Waktu pengiriman | dalam stok |
| Syarat-syarat pembayaran | L/C, D/A, D/P, T/T, Western Union |
| Menyediakan kemampuan | 10 buah |
Detail produk
Deskripsi Produk
Product characteristics
| Laser protection class | 2 |
| Housing | rectangular |
Application
| Application | Industrial applications |
Electrical data
| Operating voltage[V] | 18...30 DC; (cULus - Class 2 source required) |
| Current consumption[mA] | < 150 |
| Protection class | III |
| Reverse polarity protection | yes |
| Typ. lifetime[h] | 50000 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 |
Outputs
| Total number of outputs | 2 |
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Max. current load per output[mA] | 200 |
| Number of analog outputs | 1 |
| Analog current output[mA] | 4...20; (IEC 61131-2) |
| Max. load[Ω] | 250 |
| Analog voltage output[V] | 0...10; (IEC 61131-2) |
| Min. load resistance[Ω] | 5000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection |
yes
|
Measuring/setting range
| Measuring range[m] | 0.2...10; (white paper 200 x 200 mm 90 % remission) |
| Sampling rate[Hz] | 1...50 |
