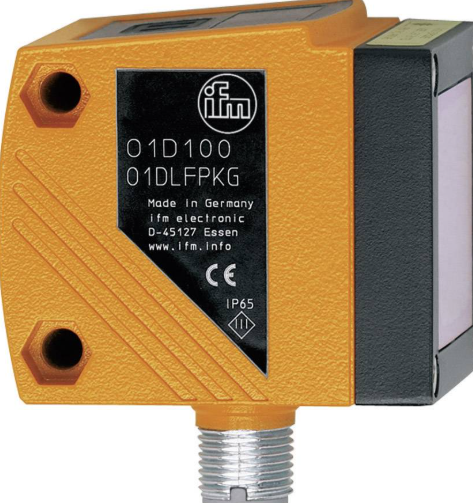

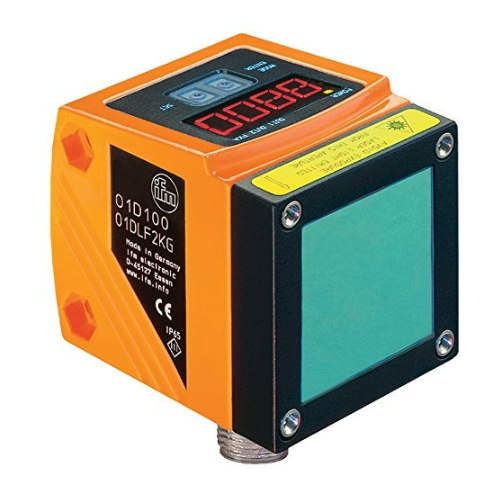

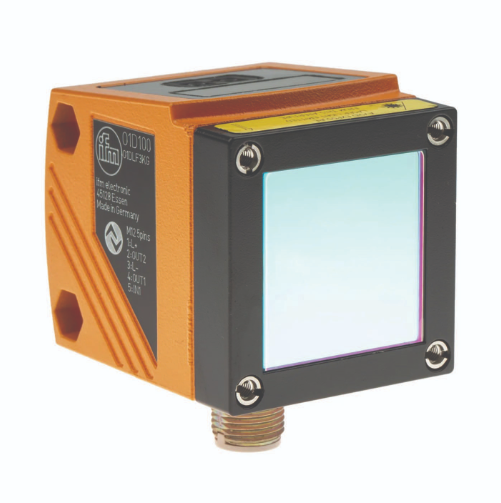

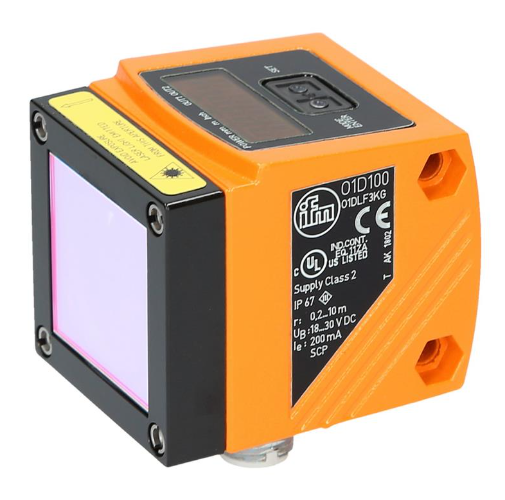

IFM Laser distance sensor O1D100

  • IFM Laser distance sensor O1D100
  • IFM Laser distance sensor O1D100
  • IFM Laser distance sensor O1D100
  • IFM Laser distance sensor O1D100
Tempat asal Jerman
Nama merek IFM
Sertifikasi CE
Nomor model O1D100
Kuantitas min Order 1
Harga US$170/PC
Kemasan rincian Karton
Waktu pengiriman 1 minggu
Syarat-syarat pembayaran L/C,D/A,D/P,T/T,Western Union
Menyediakan kemampuan 500 buah
Detail produk
Tinggalkan pesan
Deskripsi Produk
Laser protection class 2
Housing rectangular

Application

Application Industrial applications

Electrical data

Operating voltage[V] 18...30 DC; (cULus - Class 2 source required)
Current consumption[mA] < 150
Protection class III
Reverse polarity protection yes
Typ. lifetime[h] 50000

Inputs / outputs

Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1

Outputs

Total number of outputs 2
Electrical design PNP
Number of digital outputs 2
Output function normally open / closed; (configurable)
Max. current load per output[mA] 200
Number of analog outputs 1
Analog current output[mA] 4...20; (IEC 61131-2)
Max. load[Ω] 250
Analog voltage output[V] 0...10; (IEC 61131-2)
