NORIS DWA90-Q1-R1 Rotary Postion Sensors
| Tempat asal | Jerman |
|---|---|
| Nama merek | NORIS |
| Sertifikasi | CCC.CE |
| Nomor model | DWA90-Q1-R1 |
| Kuantitas min Order | 1 |
| Harga | USD$2860/PC |
| Kemasan rincian | Asli Baru |
| Waktu pengiriman | 30 hari kerja |
| Syarat-syarat pembayaran | L/C, T/T, Western Union |
| Menyediakan kemampuan | 10 buah |
Detail produk
| Jenis Produk | Sensor Posisi Putar | Tegangan Pasokan | Tegangan 15 ... 30 VDC |
|---|---|---|---|
| Rentang pengukuran | 10° ... 320° dalam langkah 10° | Sudut rotasi | 360° tanpa batasan mekanis |
| Sinyal Keluaran | 2 keluaran sinyal: 0...2 kΩ | Suhu pengoperasian | -40 ... +70°C |
| Tingkat Perlindungan | IP66 | berat | 5kg |
Deskripsi Produk

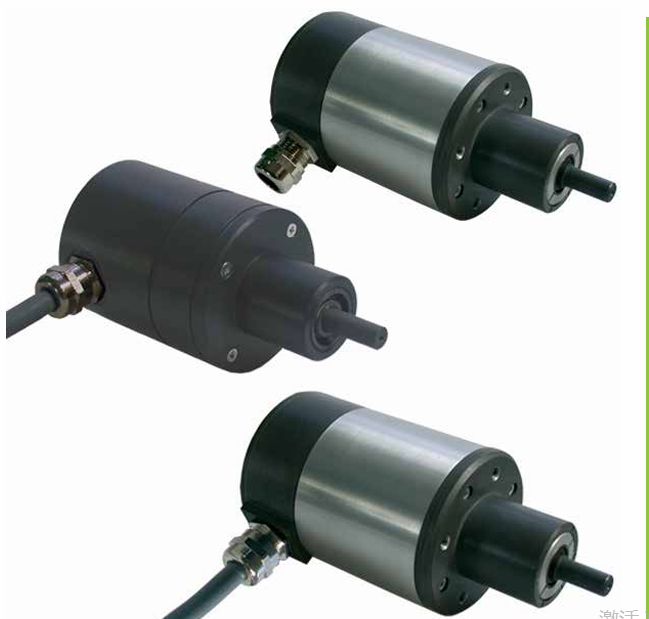

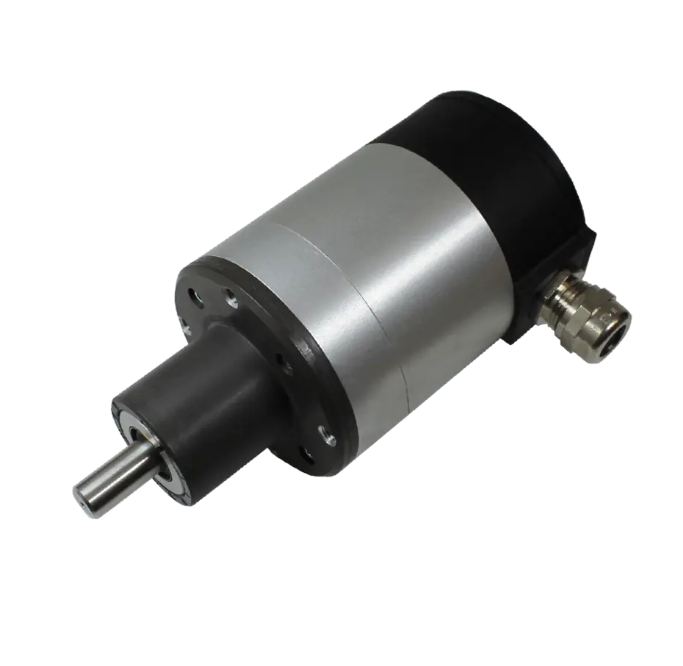

NORIS DWA90-Q1-R1 Rotary Postion Sensors
Rotary position sensors of type DWA are mechanically connected rotary position encoders. They measure the rotary position in accordance with the ohmic principle. These rotary position sensors are suitable for measuring the rudder or pitch position, for example.
Mechanically connected rotary position sensor, ohmic principle.
360° rotation angle without mechanical limitation.
Reference positions easy to adjust mechanically.
Maintenance-free operation.
No reference run necessary.
Potential-separated channels.
Approvals: ABS, BV, DNV-GL, MED
