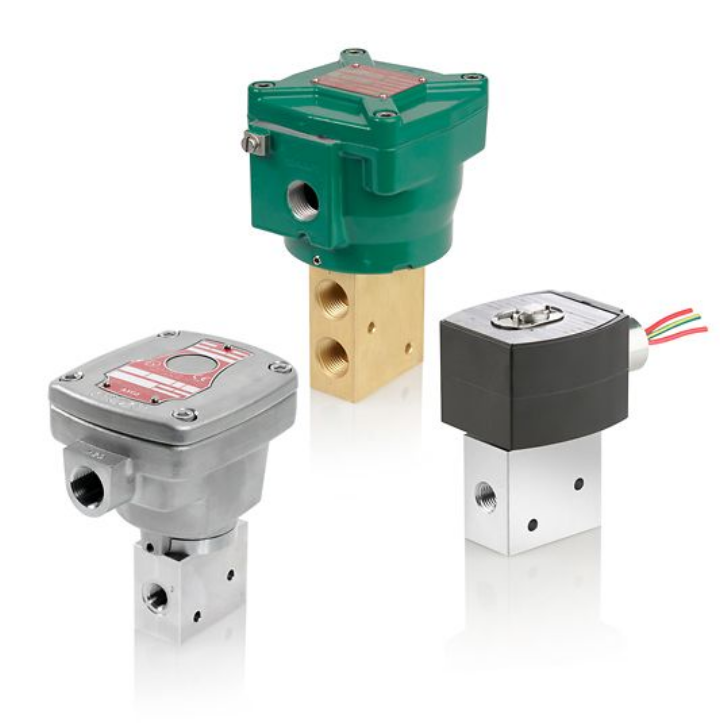

Asco WSNFET8327B102.24/DC Solenoid Valves
| Tempat asal | Amerika Serikat |
|---|---|
| Nama merek | Asco |
| Sertifikasi | CCC.CE |
| Nomor model | WSNFET8327B102 |
| Kuantitas min Order | 1 |
| Harga | USD$540/PC |
| Kemasan rincian | Asli Baru |
| Waktu pengiriman | 30 hari kerja |
| Syarat-syarat pembayaran | L/C, T/T, Western Union |
| Menyediakan kemampuan | 10 buah |
Detail produk
| Tekanan Diferensial | 0 - 10 bar | Viskositas maksimum | 65cST (mm2/s) |
|---|---|---|---|
| Waktu Respons | 75 - 100 mdtk | Tegangan Operasi | 24VDC |
| Suhu Sekitar Min hingga Maks | -20 - 60 °C | Ukuran lubang | 5,7mm |
Deskripsi Produk

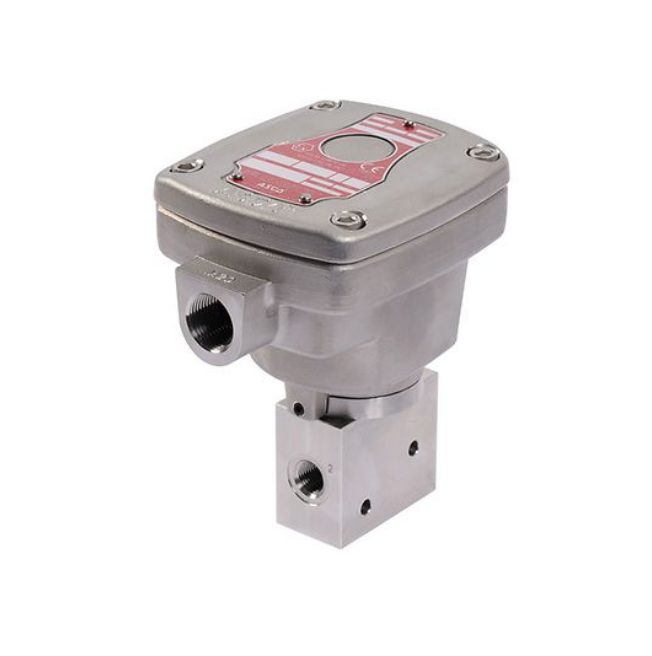

Asco WSNFET8327B102.24/DC Solenoid Valves
FEATURES
• The valves are certified according to IEC 61508 Functional Safety data and have
SIL-3 capability (TÜV & Exida certification)
• The solenoid valves are recommended for pilot applications with basic flow, wide
pressure ranges and no minimum operating pressure
• PTFE rider rings and graphite-filled PTFE seals reduce friction and eliminate
sticking
• Coils used in metal enclosures have class H insulation materials
• Dedicated execution for low power
• Dedicated execution for extreme low ambient temperatures
• Peak voltage suppression diodes are standard in DC solenoids with metal
enclosures
• The solenoid valves satisfy all relevant EU directives
• Manual Operators are optional including an under pressure removable type
• Environmental NACE compliant and certified vibration resistant in combination
with WSCR solenoids
