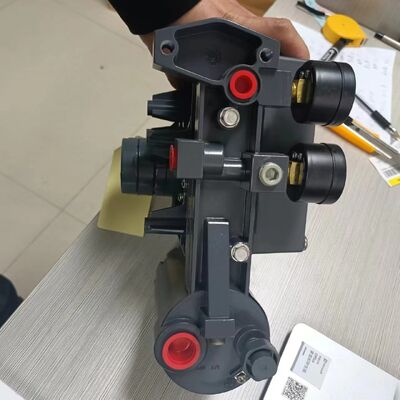

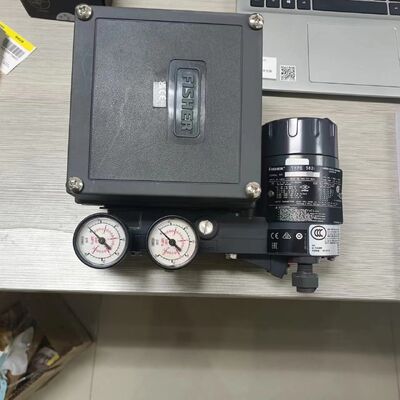

Fisher 3582i ELECTRO-PNEUMATIC CONVERTER WITH SUPPLY AND OUTPUT PRESSURE GAUGES ( 0 - 4 BAR) TYPE.3582I , , INPUT: 20 MADC , MAX: 30 VDC.MAX , AMBIENT TEMP:-40 TO 160*F

Product Description:

Fisher 3582 and 3582i Positioners, 582i Electro‐Pneumatic Converter, and 3583 Valve Stem Position Transmitter



The range of the adjustable zero and span permits the use of all standard input signals including split ranges.
Because units from one positioner family can be used in a variety of control applications, basic spare parts inventory requirements are simplified and fewer spare parts are needed to support a plant-wide positioner applications base.
With the cover removed, zero and span adjustments are easily accessible and can be made with a screw driver and spanner.
Changes in supply pressure and valve load have minimal effect on positioner operation.
Case, components, and gasket materials withstand harsh environments. Positioner bleed air purges internal parts for additional protection.
Simple adjustments permit switching between direct and reverse action.
To support diagnostic testing of valve/actuator/positioner packages with the FlowScanner™ valve diagnostic system, connectors, piping, and other hardware can be installed between the positioner and the actuator.

Features:

• Product Name: 3582i Electro-Pneumatic Positioner
• Operating Temperature Range: (-40 TO 71*C)
• Enclosure Material: Aluminum Diecasting or 316SS
• Mounting Bracket: Standard Angular Stroke Mounting Bracket
• Protection Class: IP 67 / NEMA 4X
• High durability and corrosion resistance
• Precise valve control and positioning
• Suitable for various industrial applications requiring reliable valve operation
• Area ClassificationExplosion Proof, Intrinsically Safe, Non-incendive, Dust
  CertificationsCSA, FM, ATEX, IECEx, CUTR, Peso, KGS, INMETRO, NEPSI, RCM



Technical Parameters:

Product Name
Product Type	3582i Electro-Pneumatic Positioner
Protection Class	IP 67 / NEMA 4X
Operating Temperature	- (-40 TO 71*C)
Enclosure Material	Aluminum Diecasting Or 316SS
Single Package Size	40X40X40 Cm
Shipping Weight	6 Kg
Mounting Bracket	Standard Angular Stroke Mounting Bracket
Minimum Control Current	4-20mA Feedback

Applications:



The 3582i is an electro‐pneumatic valve positioner, consisting of a 582i electro‐pneumatic converter installed on a3582 pneumatic valve positioner. The 3582i valve positioner provides an accurate valve stem position that isproportional to a DC current input signal.The 582i electro‐pneumatic converter is a modular unit that can be installed at the factory or in the field. However, donot install a 582i converter on an existing positioner until you contact your Emerson Process Management sales officefor application assistance.The 582i converter receives the DC current input signal and, through a nozzle/flapper arrangement, provides aproportional pneumatic output signal. This pneumatic output signal provides the input signal to the pneumatic valvepositioner, eliminating the need for a remote‐mounted transducer.3583 pneumatic valve stem position transmitters are for use with sliding‐stem diaphragm actuators. These unitsprovide an output signal that is directly proportional to the valve stem position.Refer to the type number description for a detailed explanation of type numbers.

Packing and Shipping:

Product Packaging:

The Pneumatic Valve Positioner is carefully packaged to ensure safe delivery and protection against damage during transit. Each unit is enclosed in an anti-static, shock-absorbing foam insert and placed inside a sturdy, corrugated cardboard box. The packaging includes clear labeling with product information, handling instructions, and safety warnings. Additionally, all accessories and installation manuals are securely packed within the box to prevent movement.

Shipping:

We offer reliable shipping options to deliver the Pneumatic Valve Positioner promptly and securely to your location. Products are shipped via trusted carriers with tracking available for all orders. Depending on the destination, shipping may include standard ground transport or expedited air freight. Special care is taken to comply with all regulations for pneumatic equipment to ensure safe and timely delivery. Customers will receive a confirmation email with tracking details once the order has been dispatched.
