Hioki CM3286-50 AC CLAMP POWER METER

  • Hioki CM3286-50 AC CLAMP POWER METER
  • Hioki CM3286-50 AC CLAMP POWER METER
  • Hioki CM3286-50 AC CLAMP POWER METER
  • Hioki CM3286-50 AC CLAMP POWER METER
Tempat asal Jepang
Nama merek Hioki
Sertifikasi CCC.CE
Nomor model CM3286-50
Kuantitas min Order 1
Harga USD$450/PC
Kemasan rincian Asli Baru
Waktu pengiriman 3 hari
Syarat-syarat pembayaran L/C, T/T, Western Union
Menyediakan kemampuan 10 buah
Detail produk
Garis pengukuran Fase tunggal, tiga fase Item pengukuran Tegangan, Arus, Tegangan/Puncak Arus, Daya Aktif/Reaktif/Semu, Faktor Daya, Sudut Fasa (*1), Frekuen
Rentang tegangan AC 80,0 V hingga 600,0 V, Rentang tunggal, Akurasi dasar 45-66 Hz: ±0,7% rdg. ±3 dgt Rentang Arus AC 0,060 A hingga 600,0 A, 3 rentang, Akurasi dasar 45-66 Hz: ±1,3% rdg. ±3 dgt
Rentang Daya 0,005 kW hingga 360,0 kW Tahan debu IP20
Dimensi dan massa 65 mm (2,56 inci) L × 241 mm (9,49 inci) T × 35 mm (1,38 inci) D, 450 g Termasuk Aksesoris Kabel Sambungan L9257 ×1, Baterai alkaline LR03 ×2, Tas Jinjing C0203 ×1, Instruksi Manual ×2, Tinda
Tinggalkan pesan
Deskripsi Produk

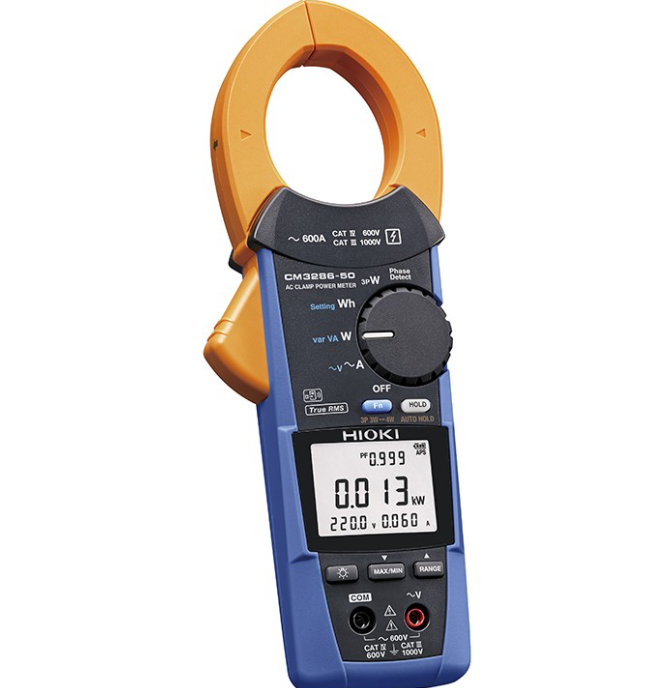

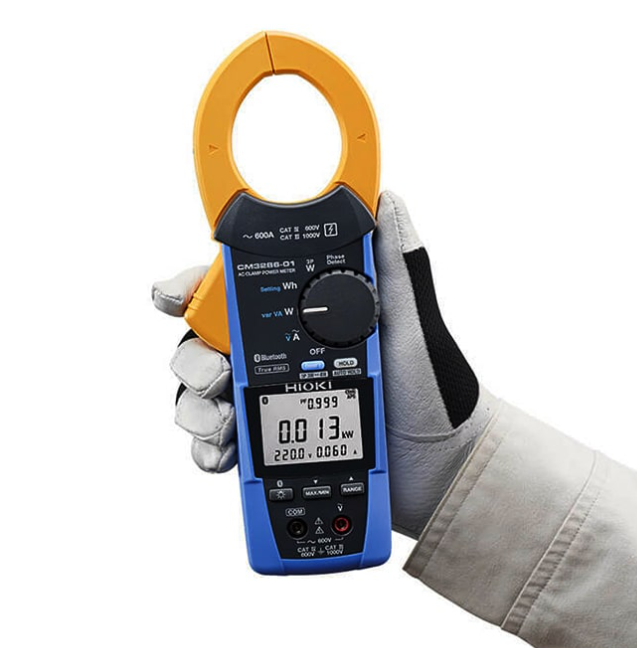

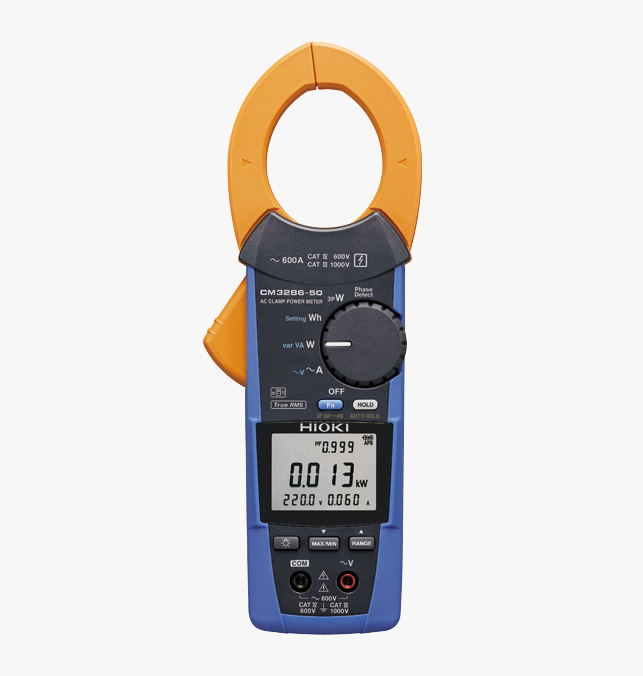

Hioki CM3286-50 AC CLAMP POWER METER

Quickly Check Current, Voltage, Power, and Power Factor

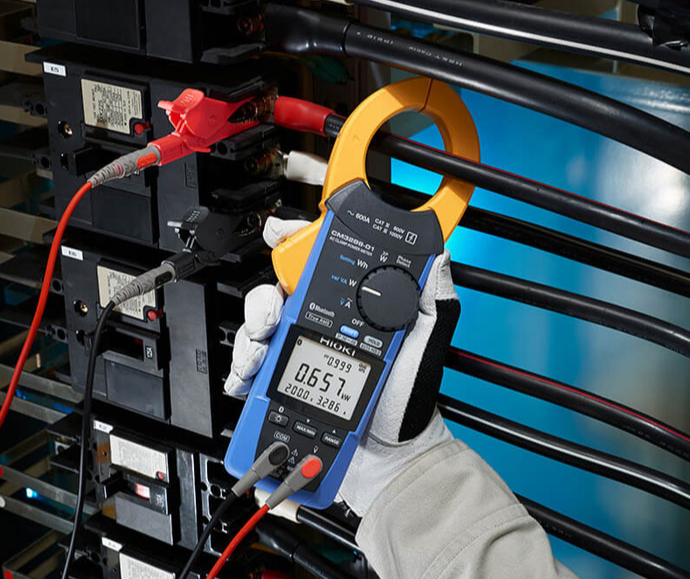

Detect Electricity Theft and Meter Tampering



Hioki clamp meters are best in class handheld current and voltage meters for safely and accurately measuring power lines. The CM3286-50 clamp on power meter can measure voltage, current, power, power factor, phase angle, reactive power or frequency, as well as detect phase sequence on live lines at any desired point of a single-phase circuit or three-phase circuit.



Hioki CM3286-50 AC CLAMP POWER METER 0
