Dwyer 605-12 605-60PA 605-13 605-125PA Differential pressure transmitter
| Tempat asal | Amerika Serikat |
|---|---|
| Nama merek | Dwyer |
| Sertifikasi | CCC.CE |
| Nomor model | 605-12 605-60PA 605-13 605-125PA |
| Kuantitas min Order | 1 |
| Harga | $340/pc |
| Kemasan rincian | karton |
| Waktu pengiriman | 6-8 minggu |
| Syarat-syarat pembayaran | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Menyediakan kemampuan | 5 |
Hubungi saya untuk sampel gratis dan kupon.
ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.
xDetail produk
| Jenis | Pemancar tekanan diferensial | Batas Suhu | 20 hingga 120°F |
|---|---|---|---|
| Proses koneksi | Benang dalam NPT 1/8 '' | Kekuatan | 10-35 VDC (2 kabel) |
| Sinyal Keluaran | 4 - 20 Ma | RESISTENSI LOOP | DC: 0 hingga 1250 Ω maks |
| Konsumsi saat ini | DC: maks 38 mA | Berat | 2kg |
Deskripsi Produk
Dwyer 605-12 605-60PA 605-13 605-125PA Differential pressure transmitter

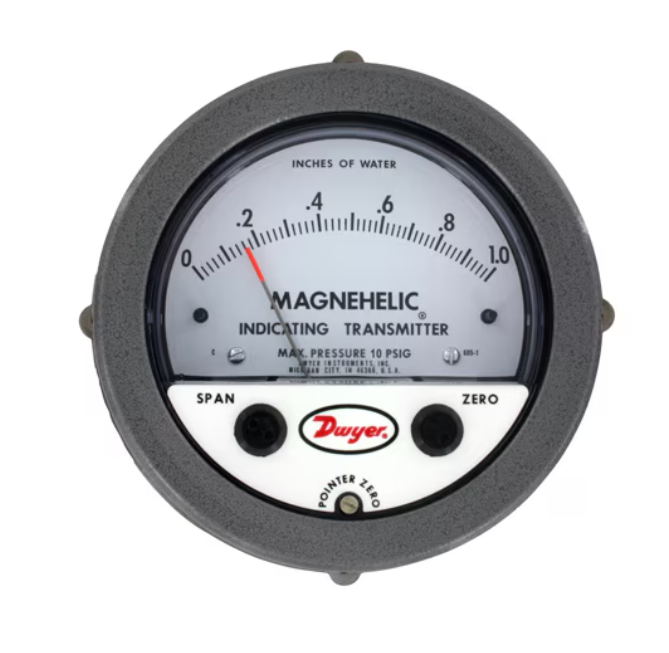

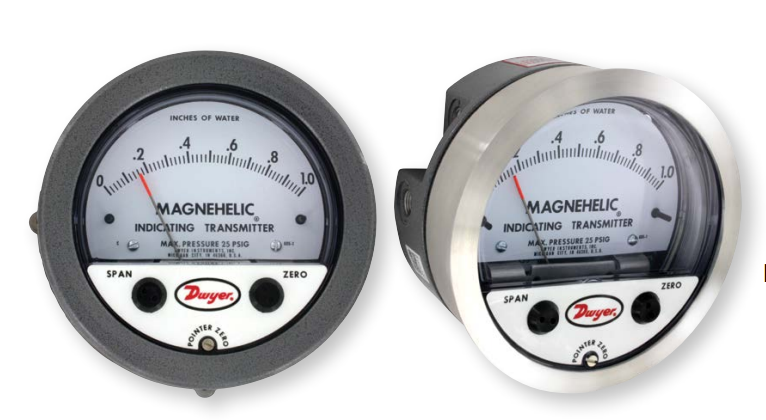

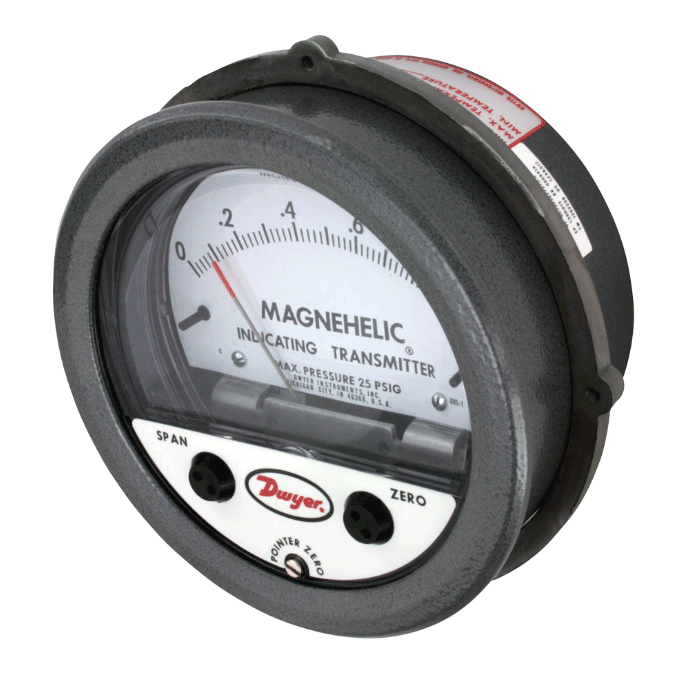

The Series 605 Magnehelic® Differential Pressure Indicating Transmitter provides for both visual monitoring and electronic control of very low differential pressure. The Series 605 is ideal for control applications in building HVAC systems where local indication is desired during routine maintenance checks or necessary when trouble shooting the system. The easily read dial gage is complimented by the 2-wire, 4-20 mA control signal utilizing the time-proven Dwyer® Magnehelic® gage mechanical design and Series 600 transmitter technology. The 2-wire design with terminal strip on the rear simplifies connection in any 4-20 mA control loop powered by a 10-35 VDC supply.
APPLICATIONS
• Monitor pressures in ducts, rooms, or total building pressures
• Filter monitoring
• Local indication of clean room pressures with process signal sent to control room
