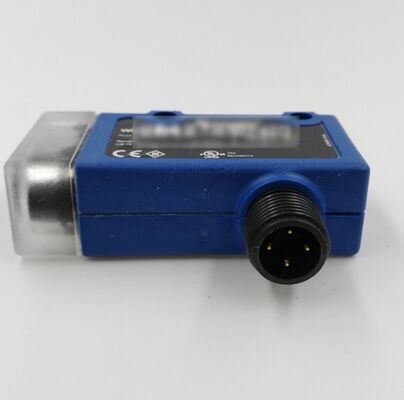

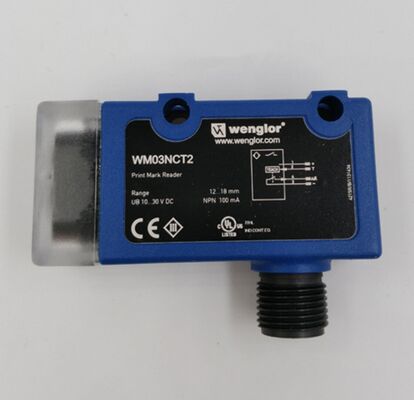

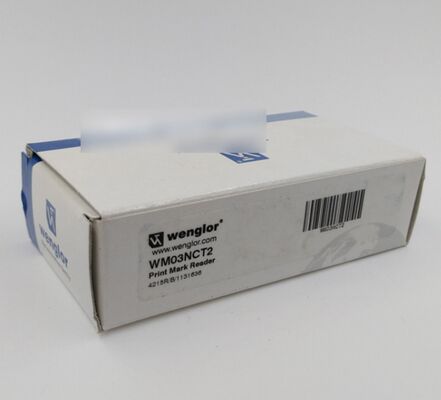

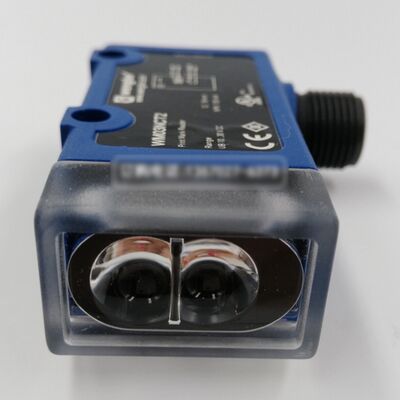

WENGLOR WM03NCT2 Photoelectric Color Scale Sensor, Print Mark Reader

  • WENGLOR WM03NCT2 Photoelectric Color Scale Sensor, Print Mark Reader
  • WENGLOR WM03NCT2 Photoelectric Color Scale Sensor, Print Mark Reader
  • WENGLOR WM03NCT2 Photoelectric Color Scale Sensor, Print Mark Reader
  • WENGLOR WM03NCT2 Photoelectric Color Scale Sensor, Print Mark Reader
Tempat asal Jerman
Nama merek WENGLOR
Sertifikasi /
Nomor model WM03NCT2
Kuantitas min Order 1 buah
Harga USD 140/PC
Kemasan rincian Kemasan asli
Waktu pengiriman 5 hari kerja
Syarat-syarat pembayaran T/T
Menyediakan kemampuan 1000pc/bulan

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Rentang kerja 12...18mm Jarak kerja 15 mm
Resolusi (Skala Abu-abu) 20 Mengalihkan histeresis < 2 %
Sumber Cahaya Cahaya putih
Tinggalkan pesan
Deskripsi Produk

Optical Data
Working Range 12 ... 18 mm
Working Distance 15 mm
Resolution (Gray Scale) 20
Switching Hysteresis < 2 %
Light Source White Light
Wavelength 400 ... 700 nm
Service Life (T = +25 °C) 100,000 h
Max. Ambient Light 10,000 Lux
Light Spot Diameter 1.5 × 2.5 mm






Electrical Data
Supply Voltage 10 ... 30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Switching Frequency 5 kHz
Response Time 100 µs
Off-Delay 20 ms
Off-Delay (RS-232) 0 ... 2 s
Temperature Drift < 2 %
Temperature Range -25 ... 60 °C
Switching Output Voltage Drop < 2.5 V
NPN Switching Output/Switching Current 100 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Lockable yes
Teach Mode ZT, FT
Protection Class III

Mechanical Data
Setting Method Teach-In
Housing Material Plastic, PBT
Optic Cover Plastic, PMMA
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin
Weight 28 g

Safety-relevant Data
MTTFd (EN ISO 13849-1) 2,164.07 a

General Data
Scope of delivery 1 × initial start-up instructions
1 × sensor






Output
NPN NO/NC switchable yes
RS-232 with Adapterbox yes
External teach-in input yes


Adjustable parameters
Circuit NC
NC/NO
NO
