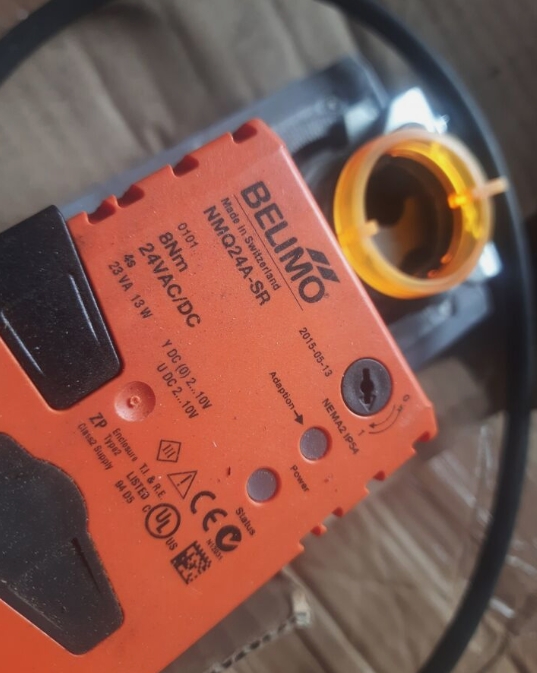

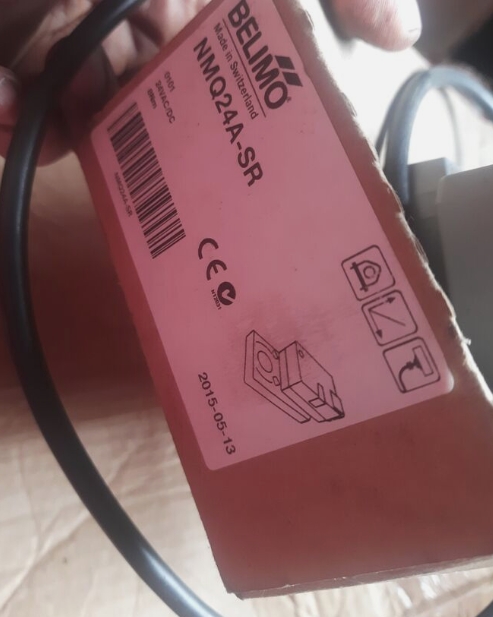

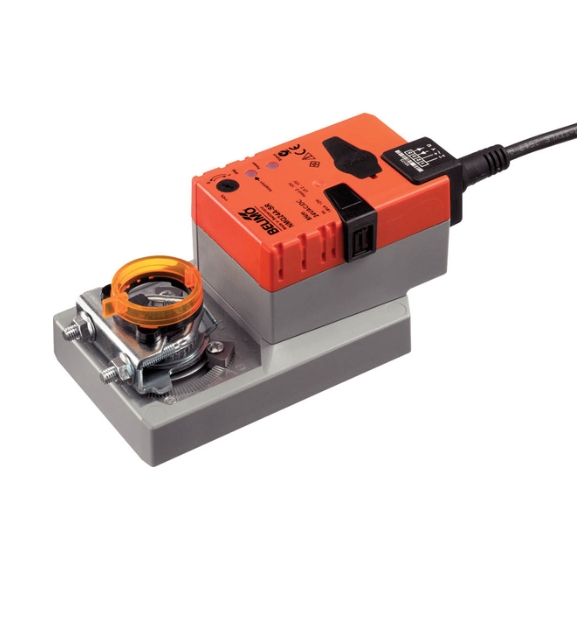

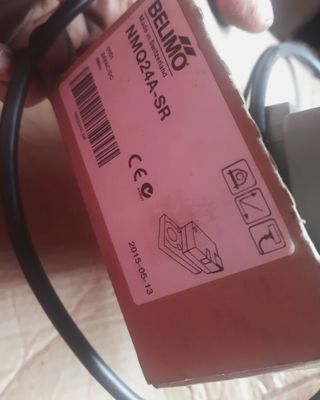

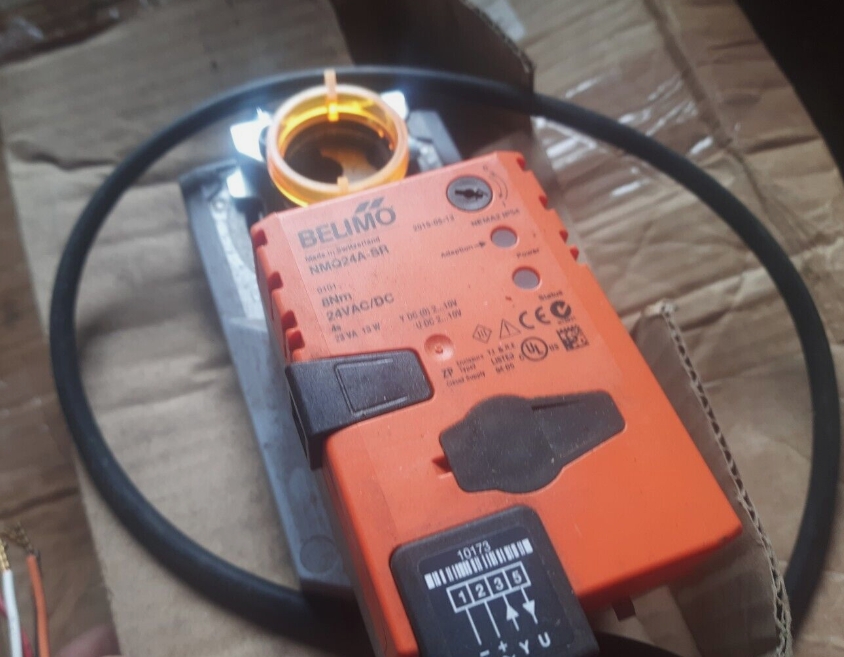

Belimo 24V Air Valve Actuator 8Nm Torque IP54

  • Belimo 24V Air Valve Actuator 8Nm Torque IP54
  • Belimo 24V Air Valve Actuator 8Nm Torque IP54
  • Belimo 24V Air Valve Actuator 8Nm Torque IP54
  • Belimo 24V Air Valve Actuator 8Nm Torque IP54
  • Belimo 24V Air Valve Actuator 8Nm Torque IP54
Place of Origin China
Nama merek Belimo
Sertifikasi /
Model Number NMQ24A-SR
Minimum Order Quantity 1pc
Harga USD 185/PC
Packaging Details original packing
Delivery Time 1-3 working days
Payment Terms T/T
Supply Ability 1000pc/month

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Nominal voltage AC/DC 24 V Power consumption (running) 13 W
Connection Supply Control Cable 1 m, 4x 0.75 mm² Torque 8 Nm
Protection category IP54
Menyoroti

Belimo air valve actuator with warranty

,

Belimo LM24A-SR control valve actuator

,

24V Belimo actuator for HVAC systems
Tinggalkan pesan
Deskripsi Produk

Specifications

Voltage AC/DC
AC/DC 24 V
Power consumption (running)
13 W
Power consumption (holding)
2 W
Power Consumption For Wire Sizing
23 VA
Connection Supply Control
Cable 1 m, 4x 0.75 mm²
Torque
8 Nm
Control type
DC 2...10 V
Direction Of Motion Motor
selectable with switch 0/1
Manual override
With push-button, can be locked
Angle of rotation
95°
Running time (motor)
4 s / 90°
Mechanical interface
Universal shaft clamp 8...26.7 mm
Protection category
IP54
Degree Of Protection NEMA
NEMA 2
Enclosure Type
UL Enclosure Type 2
Ambient Temperature
-30...40°C [-22...104°F]
