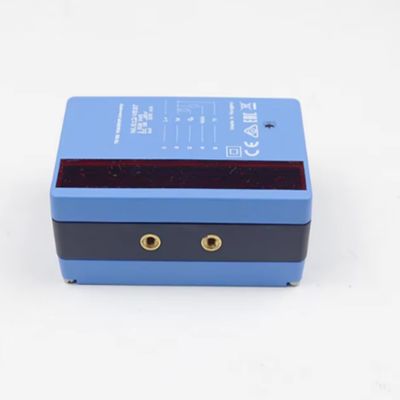

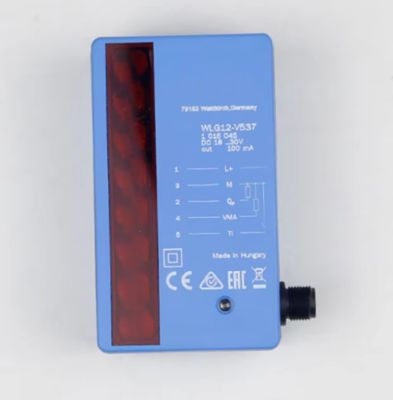

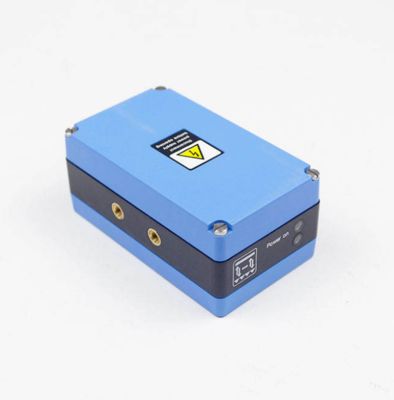

German SICK sensor WLG12-V537 new original 1016045 photoelectric sensor Schke WLG12-V537 genuine

Hubungi saya untuk sampel gratis dan kupon.
ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.
xModel Number | WLG12-V537 | Usage | Temperature Sensor |
---|---|---|---|
Output | Switching Transducer | Theory | Resistance Sensor |
Type part no. WLG12-V537 1016045 Other models and accessories www.sick.com/WLG Detailed technical data Features Sensor principle Photoelectric retro-reflective sensor Minimum detectable object (MDO) Parallel beam, 6 mm ... 12.5 mm Beam separation 12.5 mm Number of beams 8 Detection height 87.5 mm Resolution (adjustable) 6 mm ... 12.5 mm 1) 1) Dependence of the range. Mechanics/electronics Wave length 650 nm Supply voltage Vs DC 18 V ... 30 V 1) Power consumption sender 80 mA Ripple < 5 Vpp Output current Imax. ≤ 100 mA Output load, capacitive 100 nF Output load, Inductive 1 H Initialization time 0.6 s Switching output PNP 2) Output mode Q dark switching 3) Teach-in input PNP Dimensions (W x H x D) 62 mm x 106 mm x 46.6 mm Connection type Male connector M12, 5-pin 1) Typical value. 2) Ǭ. 3) Q = active, if at least one beam is interrupted, /Q = active, if all of the beams are free. 2 AUTOMATION LIGHT GRIDS | SICK Data sheet | 2025-06-11 02:12:04 Subject to change without notice WLG12-V537 | WLG AUTOMATION LIGHT GRIDS Housing material Plastic Indication LED Enclosure rating IP67 Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Protection class II Weight 230 g Front screen PMMA 1) Typical value. 2) Ǭ. 3) Q = active, if at least one beam is interrupted, /Q = active, if all of the beams are free. Performance Maximum range 1.5 m Minimum range ≥ 100 mm Operating range 1.5 m Response time Parallel beam, 0.6 ms 1) 1) With resistive load. Ambient data Shock resistance 10 g / DIN EN 60068-2-29 / 16 ms Vibration resistance 5 g, 10 Hz ... 55 Hz (IEC 68-2-6) EMC EN 60947-5-2 Ambient operating temperature–25 °C ... +55 °C Ambient temperature, storage–20 °C ... +70 °C Certificates EU declaration of conformity ✔ UK declaration of conformity ✔ ACMA declaration of conformity ✔ Moroccan declaration of conformity ✔ China-RoHS ✔ Classifications ECLASS 5.0 2727091
